Force Measurement Has Never Been Easier
The CS2Plus digital force testers from Chatillon are revolutionary systems optimized for production testing applications, including medical devices, plastics, packaging, textiles, rubber and electronics.

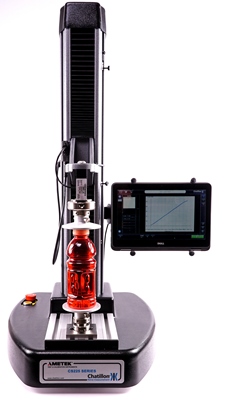

CS2Plus: The Next Generation in Digital Force Testers
The Lloyd Instruments CS2Plus builds upon the success of the popular CS2 digital force testing machine, offering enhanced capabilities and improved performance for a wider range of production testing applications.
Optimized for Efficiency and Ease of Use:
The CS2Plus is a high-precision, digital force testing machine designed to streamline testing workflows in production and laboratory environments. Suitable for testing applications up to 5 kN (1100 lbf), it excels in material testing across various industries, including:
• Rubber
• Packaging
• Pharmaceuticals
• Cosmetics
• Electronics
• Wood
Intuitive Operation and User-Friendly Design:
The CS2Plus features a 2-in-1 touch screen console with a 13” display, specifically designed for user-friendliness and ease of use in production environments. The high-resolution, color touchscreen provides both graphical and tabular representations of test results. The intuitive interface simplifies test setup, data analysis, and report generation, regardless of operator experience level. With just a few touches, users can configure tests, initiate test runs, and generate comprehensive reports.
Versatile Testing Capabilities:
The CS2Plus accommodates a wide range of testing requirements, including:
• Tensile testing (pull)
• Compression testing (push)
• Shear testing
• Flexural testing
• Advanced multi-stage testing
The system allows for programming of various testing parameters, including:
• Limit testing (load, distance, and time)
• Break testing
• Cyclic and loop testing
• Multi-stage/user-defined testing
• Spring rate calculation
• Height measurement
Available Models and Specifications:
The CS2Plus comes in two models, catering to different force capacities:
• CS2Plus-1kN (225 lbf): Ideal for testing applications up to 1 kN, featuring a spacious work area with an 180 mm throat depth and 500 mm crosshead travel.
• CS2Plus-5kN (1124 lbf): Designed for testing applications up to 5 kN, featuring a 150 mm throat depth and 800 mm crosshead travel.
Both models boast exceptional speed accuracy exceeding 1%.
Standalone Operation:
The CS2Plus eliminates the need for a separate personal computer, proprietary software, or programming knowledge. The intuitive touch screen interface provides a complete testing solution within a single, self-contained unit.
Enhanced Data Management and Connectivity:
The CS2Plus offers robust data management features, including:
• Export of results and statistics in CSV and PDF formats
• Automatic export of results via RS232 interface after each test
• 100 kHz data sampling rate for high-resolution data acquisition
