Mark-10 G1076 Wire Terminal Grip
Free Shipping!

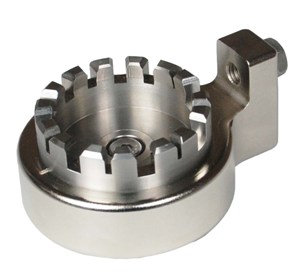

Wire Terminal Grip
Part No. G1076
Turret style wire terminal grip designed for securing wire terminals, cables, connectors, and other samples for pull testing. Grooves of multiple sizes are provided to accomodate a wide range of wire diameters up to 0.25in (6.3mm). Integrated magnets “snap” the wheel in place for each groove, to help prevent accidental rotation to a different sized groove–an extra bit of Mark-10 engineering you’ll appreciate. This grip satisfies numerous applications in medical device, wire harness, automotive, aerospace and other industries.
Use this grip with the G1002 dual roller grip, and choice of force gauges and test stands for a complete testing system.
- Wire diameter range: 0 – 0.25 in (6.3 mm)
- Groove sizes [in(mm)]: 0.01 (0.3), 0.03 (0.7), 0.04 (1.0), 0.06 (1.5), 0.08 (2.0), 0.09 (2.3), 0.11 (2.8), 0.12 (3.0), 0.14 (3.5), 0.15 (3.8), 0.17 (4.3), 0.18 (4.5), 0.20 (5.1), 0.21 (5.3), 0.23 (5.8), 0.25 (6.3)
- Rugged design
- Capacity: 200 lbF (1,000 N)
- Weight: 1.0 lb (0.45 kg)
Turret style wire terminal grip designed for securing wire terminals, cables, connectors, and other samples for pull testing. Grooves of multiple sizes are provided to accomodate a wide range of wire diameters up to 0.25in (6.3mm). Integrated magnets “snap” the wheel in place for each groove, to help prevent accidental rotation to a different sized groove–an extra bit of Mark-10 engineering you’ll appreciate. This grip satisfies numerous applications in medical device, wire harness, automotive, aerospace and other industries.
Use this grip with the G1002 dual roller grip, and choice of force gauges and test stands for a complete testing system.
Wire diameter range: 0 – 0.25 in (6.3 mm) Groove sizes [in(mm)]: 0.01 (0.3), 0.03 (0.7), 0.04 (1.0), 0.06 (1.5), 0.08 (2.0), 0.09 (2.3), 0.11 (2.8), 0.12 (3.0), 0.14 (3.5), 0.15 (3.8), 0.17 (4.3), 0.18 (4.5), 0.20 (5.1), 0.21 (5.3), 0.23 (5.8), 0.25 (6.3) Rugged design Capacity: 200 lbF (1,000 N) Weight: 1.0 lb (0.45 kg)
FULL DESCRIPTION +
Turret style wire terminal grip designed for securing wire terminals, cables, connectors, and other samples for pull testing. Grooves of multiple sizes are provided to accomodate a wide range of wire diameters up to 0.25in (6.3mm). Integrated magnets “snap” the wheel in place for each groove, to help prevent accidental rotation to a different sized groove–an extra bit of Mark-10 engineering you’ll appreciate. This grip satisfies numerous applications in medical device, wire harness, automotive, aerospace and other industries.
Use this grip with the G1002 dual roller grip, and choice of force gauges and test stands for a complete testing system.
- Wire diameter range: 0 – 0.25 in (6.3 mm)
- Groove sizes [in(mm)]: 0.01 (0.3), 0.03 (0.7), 0.04 (1.0), 0.06 (1.5), 0.08 (2.0), 0.09 (2.3), 0.11 (2.8), 0.12 (3.0), 0.14 (3.5), 0.15 (3.8), 0.17 (4.3), 0.18 (4.5), 0.20 (5.1), 0.21 (5.3), 0.23 (5.8), 0.25 (6.3)
- Rugged design
- Capacity: 200 lbF (1,000 N)
- Weight: 1.0 lb (0.45 kg)
