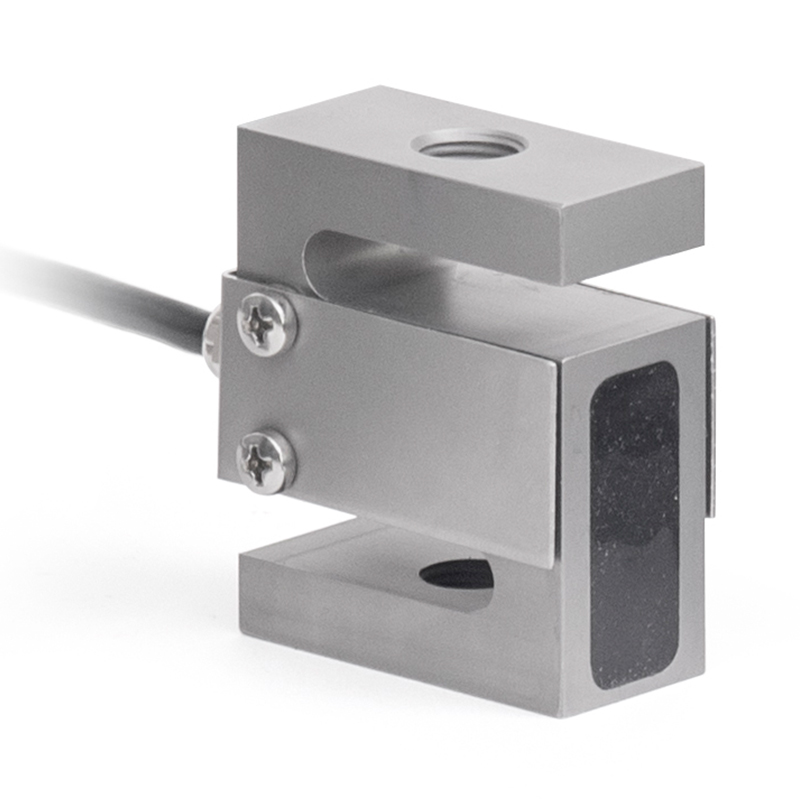

Mark-10 Series RO7 Tension & Compression Force Sensors for F755 / F75S / F1505 / F1505S test frames

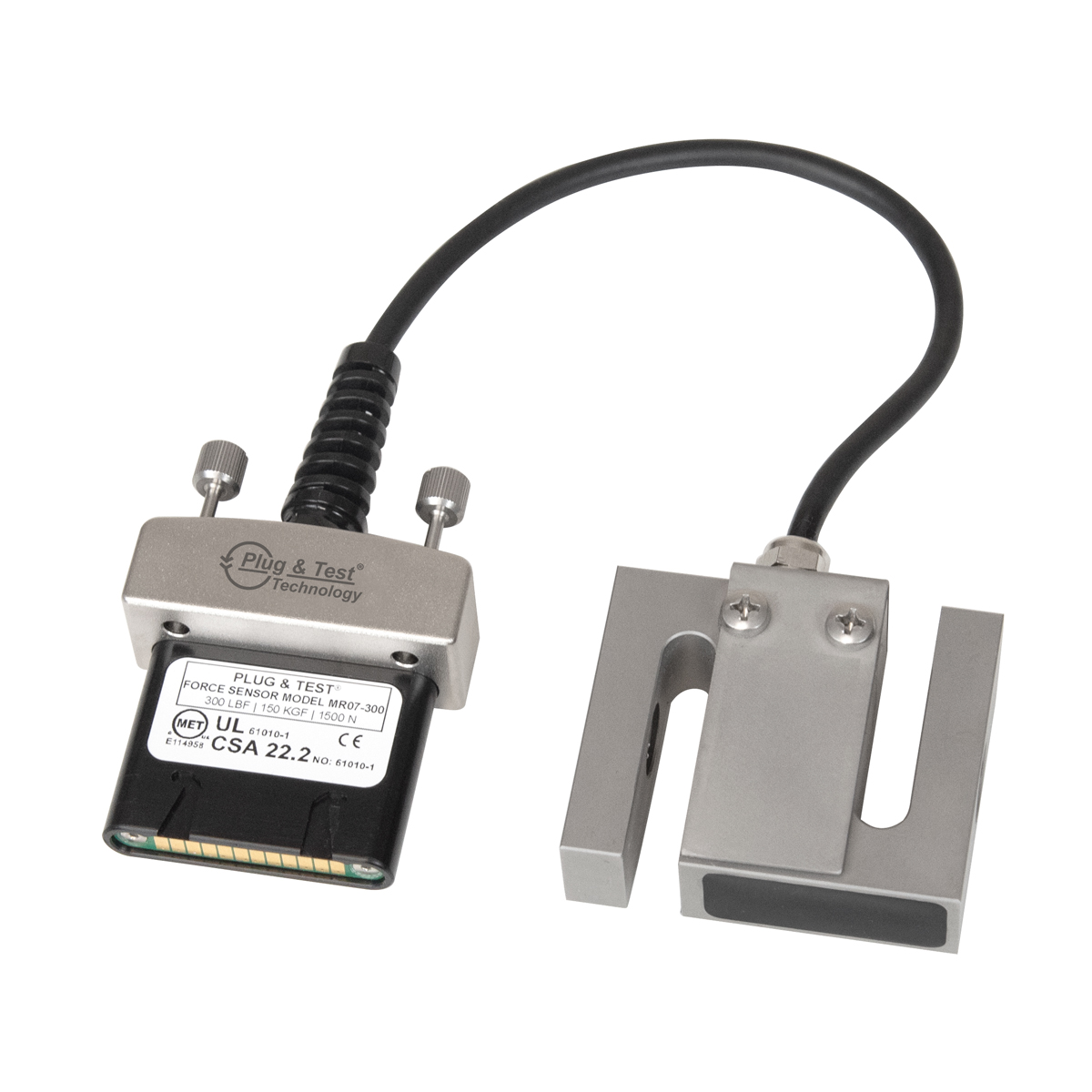

Series MR07 force sensors measure tension and compression forces, and are designed for Series F test frames. With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter required).
Ranges available from 50 to 1,500 lbF [250 N to 7.5 kN]. Compatible with Models F755, F755S, F1505, and F1505S test frames.
Not compatible with Models F105, F305, F505, and F505H.
- Accuracy:
± 0.15% of full scale + indicator or test frame - Safe Overload:
150% of full scale
IN [MM]
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| MR07-50 | 2.40 [61.0] |
2.00 [50.8] |
0.46 [11.7] |
0.90 [22.9] |
1/4-28 UNF | 10.00 [254.0] |
| MR07-100 | ||||||
| MR07-200 | ||||||
| MR07-300 | 0.71 [18.0] |
1.10 [27.9] |
1/2-20 UNF | |||
| MR07-500 | ||||||
| MR07-750 | ||||||
| MR07-1000 | ||||||
| MR07-1500 | 0.96 [24.4] |
1.40 [35.6] |
