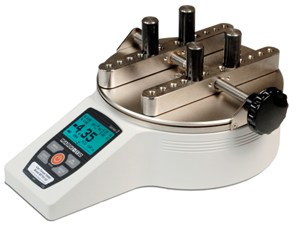

Digital Torque Cap Tester
Series TT01

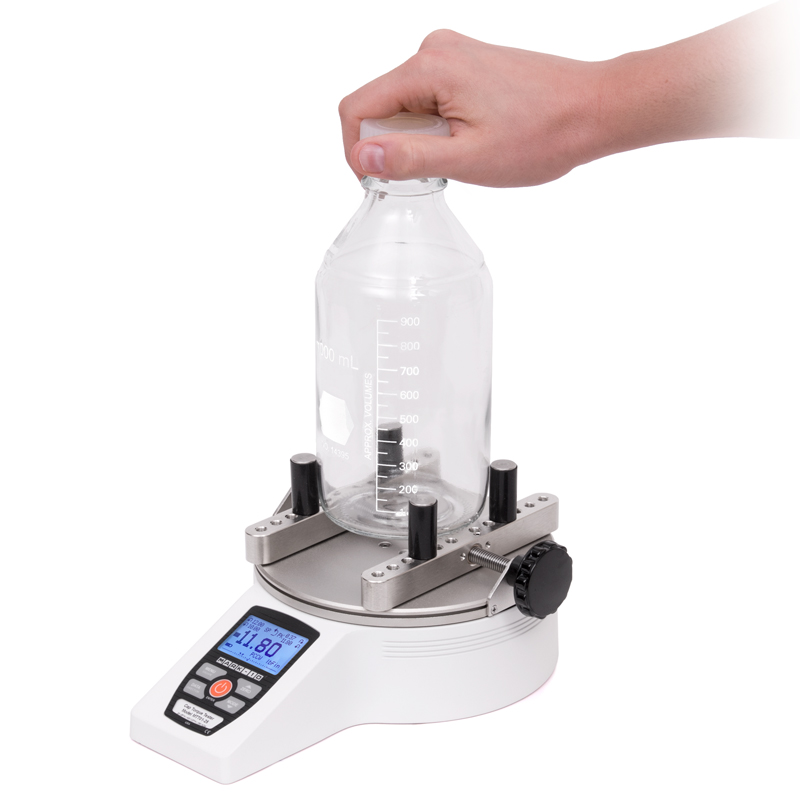

Series TT01 Cap Torque Testers are designed to measure the application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.
Class-leading accuracy of ±0.3% and a blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications.
Series TT01 cap torque testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single-point data. Data stored in the TT01’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
The TT01 cap torque tester includes a range of sophisticated productivity-enhancing features:

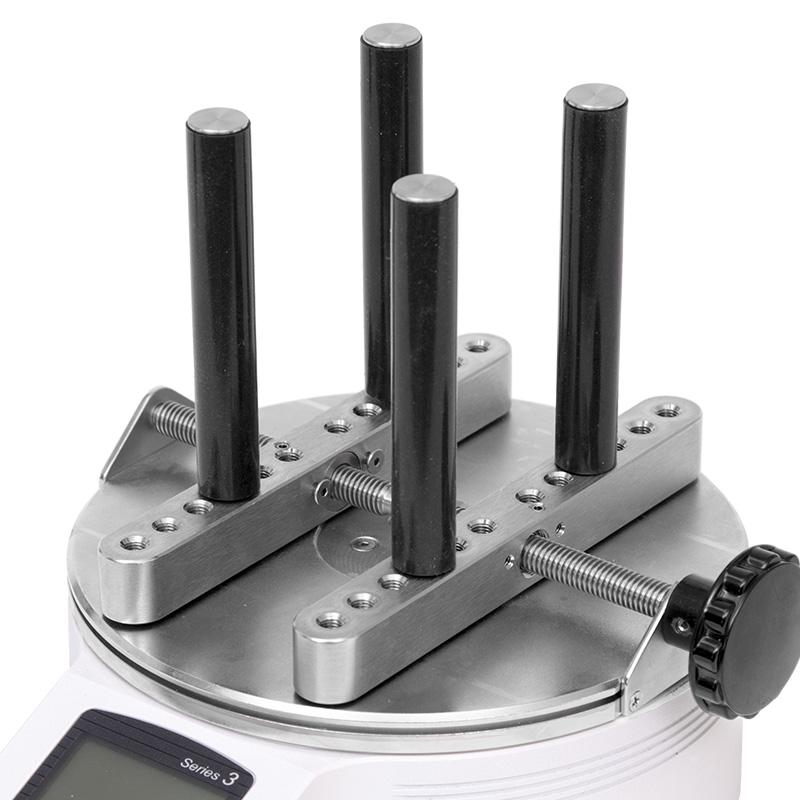

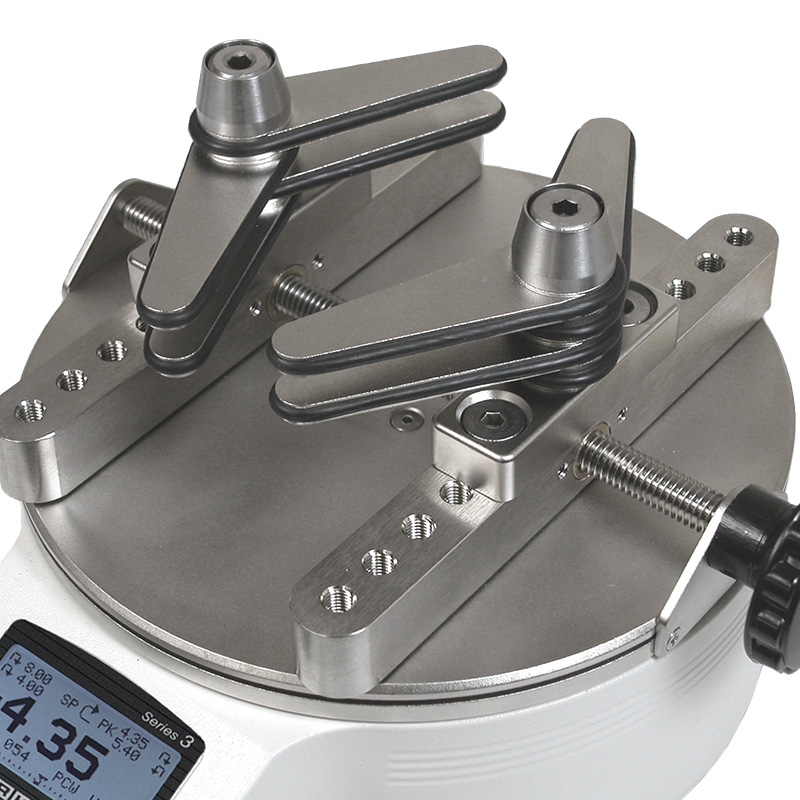

- Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes.

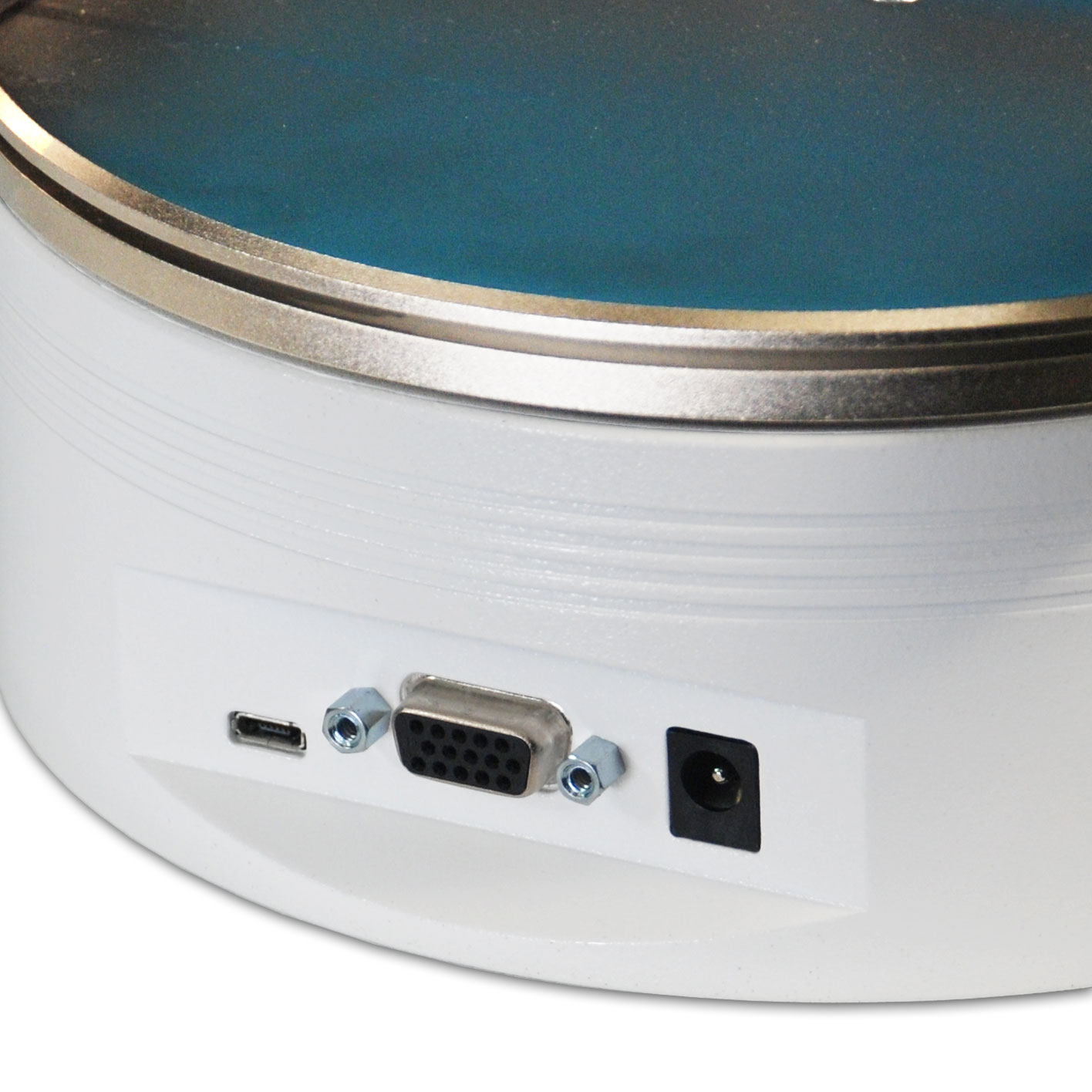

- USB, RS-232, Mitutoyo, and analog outputs.
- Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes.
- 1,000-point data memory with statistics and outputs.
- Password protection prevents unauthorized changes.
- Programmable set point indicators and outputs for pass/ fail determination.
- High-speed 7,000 Hz sampling rate accurately captures peak torque values.
- Configurable audio alarms and key tones.
- 5 selectable units of measurement.
- MESURTMLite data collection software included.
