Mark-10 TT03C Cap Torque Gauge

Cap Torque Gauge

Series TT03C

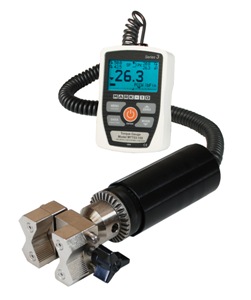

Series TT03C digital cap torque gauges are quick and economical solutions for basic hand held cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from 0.65-1.55 inches (16.5-39.4mm) diameter.

Includes MESUR Lite data collection software, USB cable, carrying case, Ac adapter, battery, chuck key, cap grip and quick start guide.

Note: USB output now allows the gauge to respond to the ? ASCII command, allowing programs such as MESUR gauge and MESUR Lite to request single point or continuous data.

• Ergonomic Torque sensor with Jacobs chuck
• Peak values saved and displayed
• High speed 2000 Hz sampling rate
• USB data output
• Live load bar graphs with set point markers
• MESUR Lite software included.
• Battery or AC operation
• 3 year warranty
