Light Duty Orbital Shakers
• Designed for flexibility with your applications – OHAUS Light Duty Shakers include the ready-to-use tray and mat, or remove the mat and customize the tray with over 20 easy-to-install accessories.
• Well-performing economical choice for your everyday laboratory shaking needs. Non-digital model offers reliable shaking across the entire speed range with the robust triple eccentric drive design.
• Microplate shaker is designed to securely hold up to four microplates or deepwell plates, or easily install two microtube racks. Units slowly increase speed to desired setpoint to avoid splashing.
The OHAUS Digital Light Duty Orbital Shaker is ideal for a wide variety of shaking applications. Tray includes a non-skid rubber mat. Remove the mat to mount a variety of optional flask clamps or test tube racks directly onto the tray.
Operating Features:
Low Profile Design: Takes up less space and easily fits into most hoods and incubators.
Microprocessor Control: The variable speed microprocessor control provides consistent uniform shaking action. Microprocessor will display last set-point and will restart if power is interrupted.
Triple Eccentric Drive: Permanently lubricated ball bearings and maintenance free, brushless DC motor provide reliable service and continuous duty operation.
LED Display: Touchpad controls with easy-to-read, independent LED displays for speed and time allow operator to view both settings at once. Provides repeatable and accurate results every time and is easily visible across lab benches. Timer will display elapsed time or, when programmed to user defined limit, will shut off unit when time reaches zero. Display will show last used settings, even after power has been turned off.
Safety Features:
Overload Protection: Audible and visual signals will activate when system detects an obstruction or overload of the tray.
Speed Ramping Feature: Slowly increases speed to desired set-point to avoid splashing.
Audible Alarm: In timed mode, alarm will sound when the time reaches zero.
Spill-Resistant Design: Channels fluids away from internal components.
Operating Conditions:
Units can be run in cold rooms, incubators, and CO2 environments.
SHLD0403DG: -10 to 60°C (14 to 140°F)
SHLD0415DG: -10 to 40°C (14 to 104°F)
Maximum 80% relative humidity, non-condensing.
Applications:
Cell cultures, immunoassays, and protein studies.
Ordering Information:

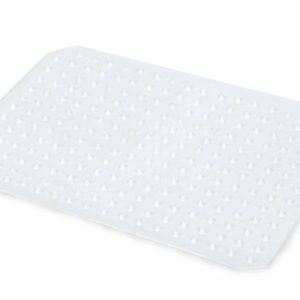

Units include a detachable, 3-wire cord and plug. Units are also supplied with an 11.75 × 8.75″ (29.9 ×
22.2 cm) non-skid rubber mat.
