This self-indicating version of the well-known product ‘Bluelink’ has advanced features and benefits, providing solutions where close-up load monitoring is required, such as when operating lever or chain hoists at height or lifting vehicle motors.
The advanced microprocessor-based electronics provide the SID with high-speed read rates, extreme resistance to industrial-level noise and unprecedented stability. It features full-function push button controls for:
• Tare and preset tare
• Selectable measurement units (lbs, kg, kN and tonnes)
• 100Hz high-speed peak hold
• Audible set-point alarm
• Overload counter
Providing accurate load measurement and incident and injury prevention this dynamometer is rigged using industry-standard shackles such as Crosby G2130, the compact design minimizes headroom loss (6.14” or 156mm from eye to eye).
Constructed with high-grade aircraft quality aluminum and with a safety factor of 6:1, its lightweight design does not sacrifice on strength in fact, Crosby SP’s link style dynamometers are on average 30% lighter than other suppliers.

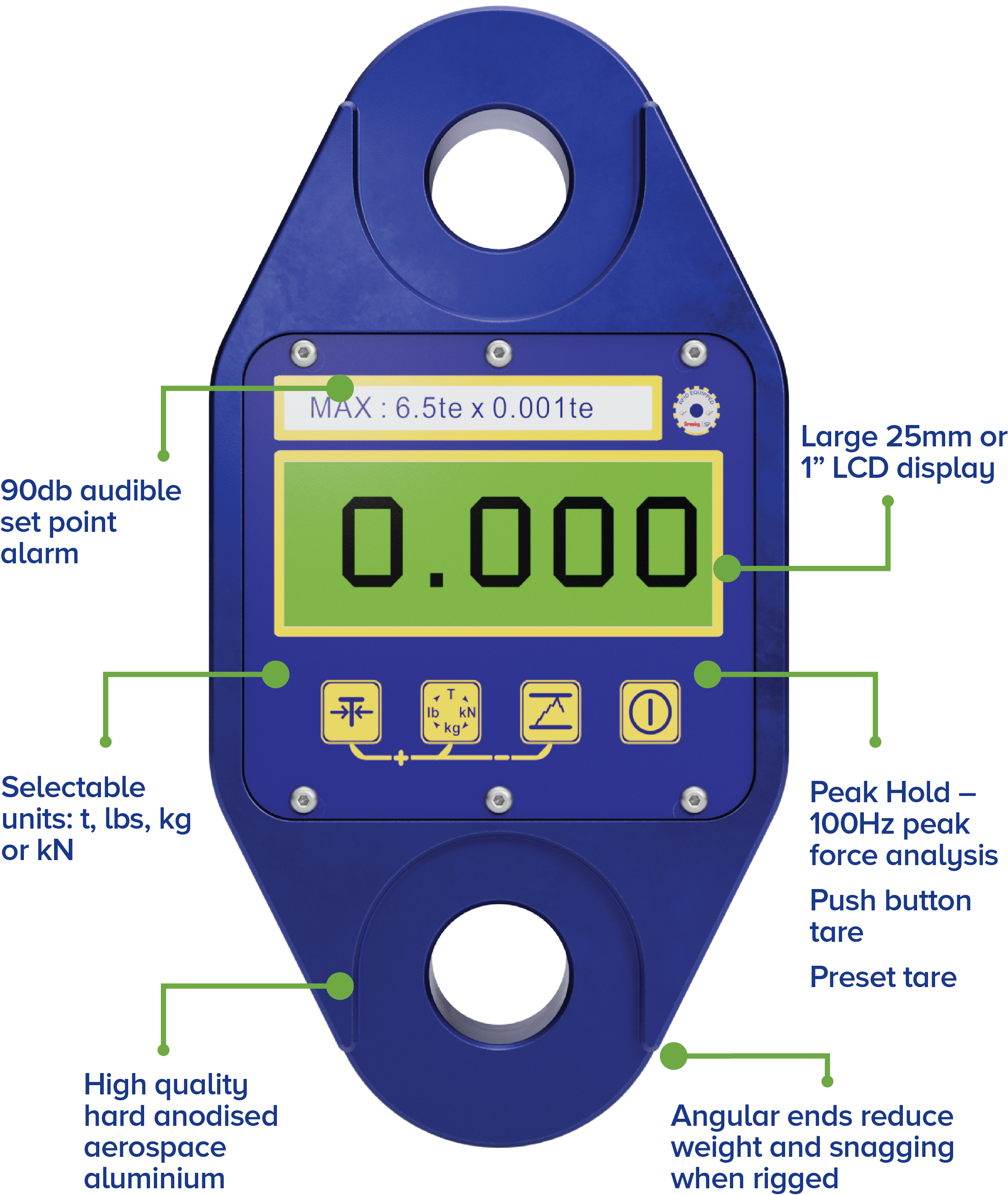

FEATURES
- Large 1” / 25mm LCD display
- 6:1 Safety Factor
- 0.2% high accuracy
- Overload counter
- 90db Audible set point alarm
- RS-485 serial output
- IP65 / NEMA 4X
- Design validated by F.E.A.
- 2-year warranty
SUPPLIED WITH THE FOLLOWING AS STANDARD
- 4 x AA Batteries
- Calibration & proof test certificate
- Multi-lingual user manual
- Carry/transit case
- RFID Tagged
